Forged Grab Clip Hook With D Ring
Video
Product Parameters
|
Steel Products |
Forged Hook |
|
|
Item No. |
HK-8 |
|
| General Description | ||
|
Brand Name |
RY |
|
|
Item Name |
Forged Grab Clip Hook with D ring |
|
|
Item Number |
HK-8 |
|
|
Place of Origin |
Jiangxi, China |
|
|
Certification |
ISO9001 |
|
| Business Terms | ||
|
Material |
Carbon Steel |
|
|
Process |
Forging & Welding |
|
|
Finishing |
Zinc Plating |
|
|
Colour |
Clear Zinc\ Yellow Zinc |
|
|
MBS |
3000kgs/6600lbs |
|
|
Unit Weight |
175g |
|
|
MOQ |
1000pcs |
|
|
Price |
Negotiable |
|
|
Lead Time |
Within 45days |
|
|
Payment |
T/T with 30% deposit, L/C at sight |
|
|
Port |
Ningbo/ Shanghai |
|
|
Supply Ability |
Five million per year |
|
|
Size |
 |
|
Application Fields

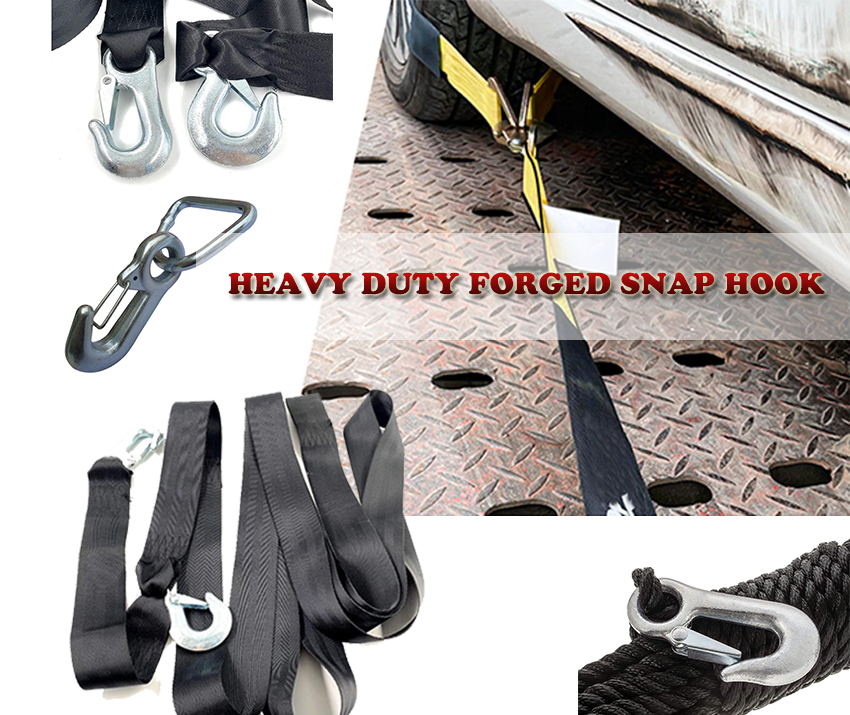

The forged snap hook (with D ring or without D ring) is strong and delicate, usually associated with tie down straps, used for goods securing, transport towing, winches, ratchet kit, chain hoist and etc. The 35mm of D ring is ideal for 1” straps, and the latch can be safety snap, also spring latch as well. This clip hook is with a safe working load of 2100lbs, and break strength of over 6600lbs, which can be be widely used for securing, connecting and protecting whatever you want.
Technical Feature
1.Made of 1045# steel, by production technology of forging and welding.
2.2100lbs working load limit, and 6600lbs breaking strength.
3.Galvanized finishing protect the parts from rust and corrosion.

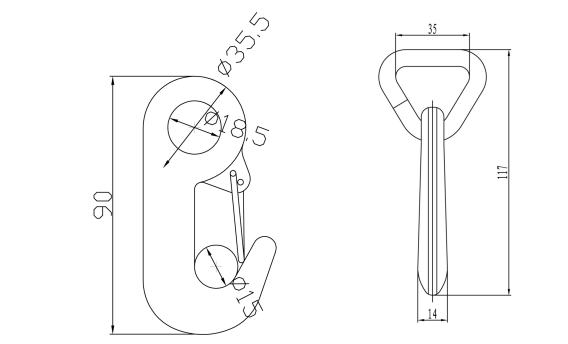

4.With an eye of dimension 13.5mm, and 35mm D ring, perfectly match to 1 inch tie down straps or wire rope.
5.The hook latch can be safety latch, and spring latch as well.
Company Advantage
Our factory have been specialized in the cargo control equipment for nearly 20 years, our main products includes all kinds of fasteners, ratchet buckles, hardware, automotive hand tools, rubber and plastic parts, etc, which are widely used in trucks and other transportation equipment. We have 6 workshops: forging, stamping, heat treatment, welding, precise processing, and assembly workshops. Over years of development, we have achieved annual productivity 7 million pieces, with daily productivity 30000pcs, passed through ISO9001 quality management system certification.
Parts Of Series
1.We provide a series of grab hook, clip hook and clevis hook, with different eye dimension, and different load rating.
2.Welcome customization according to your drawing or sample.
Product Packaging
1.Packed in cartons, and shipped in pallets, also support to customer’s other requirements.
2.Gross weight of each carton is no more than 20kgs, providing friendly weight to workers for moving.
